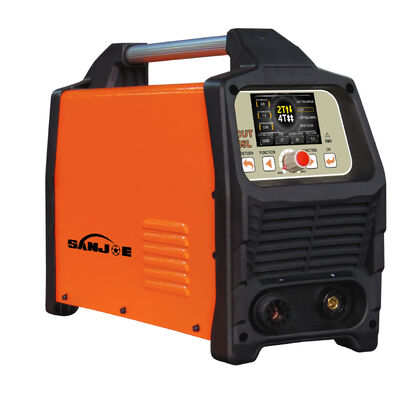

Portable Plasma Cutter Igbt 40A 1 Phase CUT-45L LCD

100 τεμ
MOQ
Διαπραγματεύσιμα
τιμή
Portable Plasma Cutter Igbt 40A 1 Phase CUT-45L LCD
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Τάση εισόδου: Ενιαία phs AC220V±15%
Εύρος ρεύματος εξόδου: 25-40Α
Αξιολογημένη ισχύς εισόδου: 6.6KVA
Κύκλος εργασίας: 30%
Ποιοτικό τέμνον πάχος: 8 χιλιοστά
Μέγιστο πάχος: 12 mm
Πίεση αέρα: 4,5KGF/CM²
οθόνη υγρού κρυστάλλου: 3,5 ιντσών
Λειτουργία κοπής: Πιάτο/πλέγμα
Μέγεθος Μηχανής: 375*160*310 χλστ
Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: Sanjoe
Πιστοποίηση: CCC,CE,RoHS
Αριθμό μοντέλου: CUT-45L
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: χαρτοκιβώτιο
Χρόνος παράδοσης: 30-50 ημέρες
Δυνατότητα προσφοράς: 3000pcs το μήνα
Περιγραφή προϊόντων

Portable Plasma Cutter Igbt Technology 40A Single phase CUT-45L

Newest High Quality LCD plasma cutting machine Hotsale single phase 220V 40A CUT-45L

CUT-45L LCD display 40A IGBT Plasma Cutter grid cutting





LCD display 40A IGBT CUT-45L Plasma Cutter grid cutting

Model No.:CUT-45L

Features:

  • IGBT technology

  • 3.5-inch full-colored LCD screen

  • An interactive control system, One-Knob control

  • 2 cutting mode: Plate/Grid

  • Low-Frequency cutting





TECHNICAL PARAMETERS UNIT CUT-45L
Rated input voltage V Single-phase AC 220V±15% 50/60
Rated input power KVA 6.6
Output current range A 25-40
Duty Cycle % 30
Air Pressure KGF/CM2 4.5
Thickness of Cutting MM 8
Max.Tickness of Cutting MM 12


Portable Plasma Cutter Igbt 40A 1 Phase CUT-45L LCD 0


Q&A

Q: How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed OEM details

Step 4, finally we deliver the goods within the stipulated time.

Q: What is the MOQ?
A: Depends on models. From 20-500 pieces. Accept sample.
Also can mix models in 1 container.
Q: When you ship my order
R: Normally container need 30-50 days, sample 5-7 days

Q: How about the quality guarantee period?
R: One year.

Q: Do you have the certificates?
R: Yes, we have passed the CE, EMC, RoHS and CCC certification. Other certifications can be prepared.

Q: Do you offer ODM & OEM service.
R: Yes, we can custom design for specific application.

Q: When can I get the quotation?
R:We usually quote within 12 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.

Q: How can I get a sample to check your quality?
R:After price confirmed, you can require for samples to check quality.
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ.

Q: What is your main market?
R: Europe, South America, East Asia, Russia, Australia etc..
